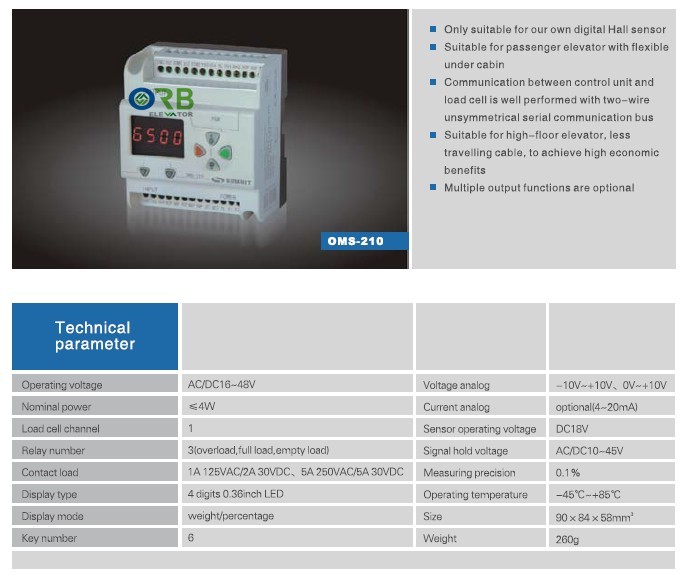

  • Product Name:

    Control unit
  • Model No.:

    OMS-210
  • Minimum Order:

    1

Product Abstract:

Elevator load cell controller; 1.Analog output 0~10V,-10~10V; 2.plate of 3 relays(light load,heavy load,overload)


Product Description



1.Especially developed for elevators.

2.digital programming via keyboard

3.different choices to fix the device: Din rail or with screws

4.compact box manufactured in ABS fireproof material.

5.Unsymmetrical duplex serial communication bus(USDSC-BUS)

6.Analog output 0~10V,-10~10V

7.plate of 3 relays(light load,heavy load,overload)



Technical parameter
Power supply voltage  AC/DC 14V~65V  Analog output  optional
power rating  ≤4W  Galvanically isolated  enable
 Alarm relays  3  output voltage(load>500Ω)  0~10V,-10~10V
 Max. switching voltage 250AC  output current(load<500Ω)  disable
 Max. peak current 5A   measuring channel 1
 Rated current 3A   Bandwidth 30HZ
 Rated load(resistive) in AC1 800VA   Sampling rate 100HZ
 Rated load(resistive) in AC15  200VA  Floor compensation enable


More information, please contact us, orbeli_peter@163.com
